Description

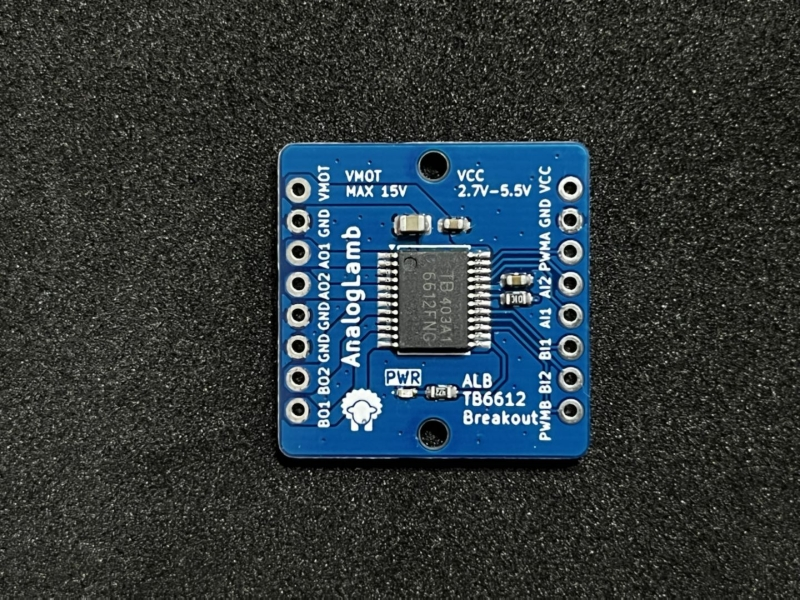

ALB TB6612FNG Breakout – Driver IC for Dual DC motor
Overview
TB6612FNG is a driver IC for DC motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.
Features
- Power supply voltage: VM=15V（Max.）
- Output current: Iout=1.2A(ave) / 3.2A (peak)
- Output low ON resistor: 0.5Ω (upper＋lower Typ. @VM≧5V)
- Standby (Power save) system
- CW/CCW/short brake/stop function modes
- Built-in thermal shutdown circuit and low voltage detecting circuit
Specifications
- TB6612FNG – Driver IC for Dual DC motor，VM=15V（Max.）
- Headers for All Avaible Pins, easy to use
- Output current: Iout=1.2A(ave) / 3.2A (peak)
- Standby (Power save) system, Pull-up with 10K Resistor
- Dimension: 25 x 25 x 5 mm

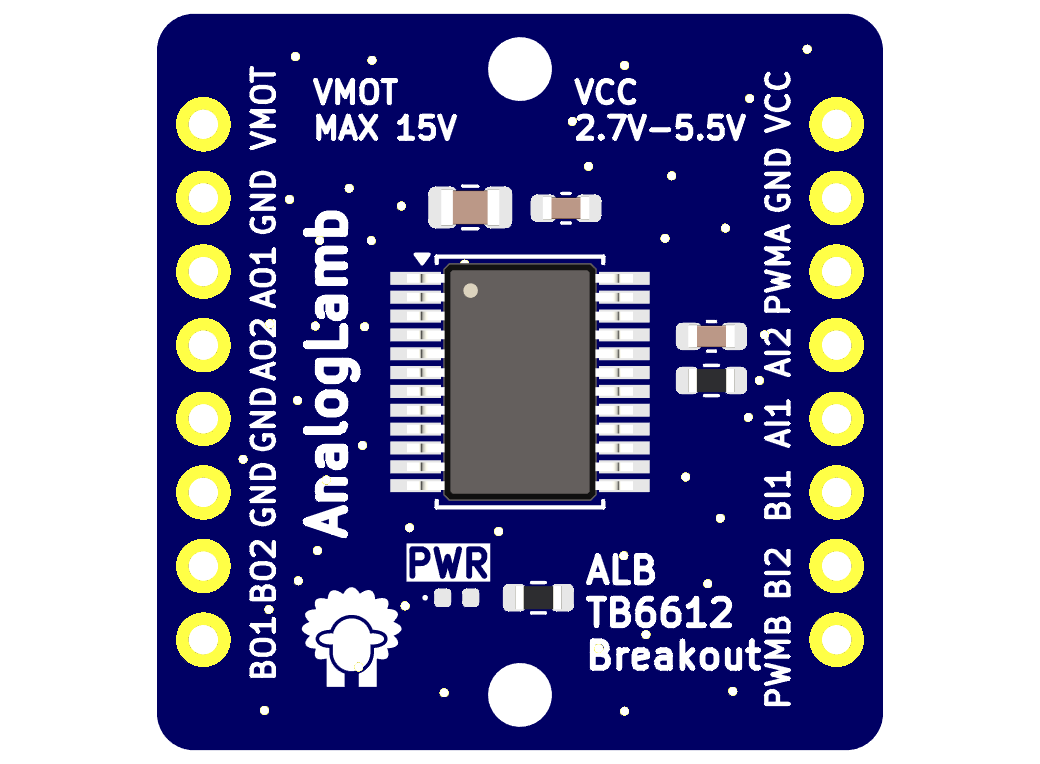

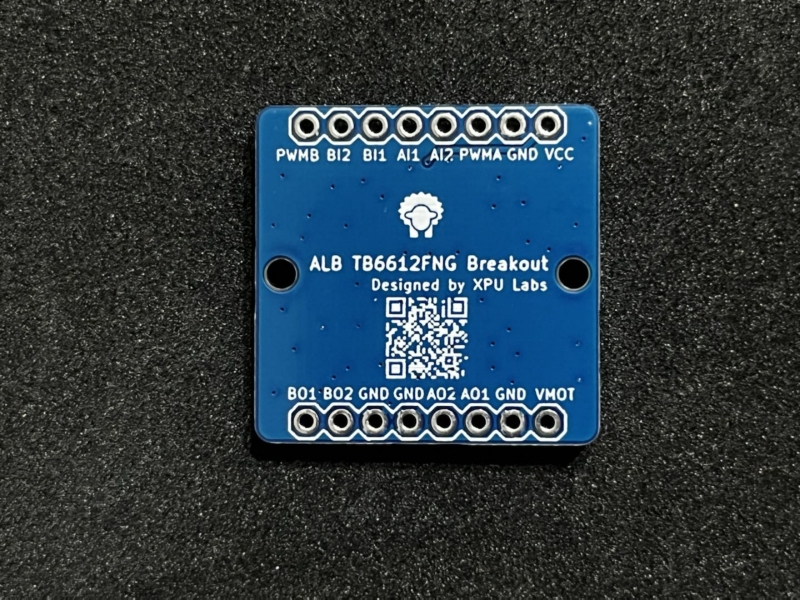

Hardware
| PIN | DESCRIPTION | NOTE |
|---|---|---|
| VMOT | Power Suppy of Motor | |
| GND | Ground | |
| AO1 | Channel A output pin1 | |
| AO2 | Channel A output pin2 | |
| GND | Ground | |
| GND | Ground | |
| BO2 | Channel B output pin2 | |
| BO1 | Channel B output pin1 | |
| VCC | Power Suppy 3.3V | |
| GND | Ground | |
| PWMA | Channel A PWM input/200 kΩ pull-down at internal | |
| AI2 | Channel A input 1/200 kΩ pull-down at internal | |
| AI1 | Channel A input 1/200 kΩ pull-down at internal | |
| BI2 | Channel B input 1/200 kΩ pull-down at internal | |
| BI1 | Channel B input 1/200 kΩ pull-down at internal | |
| PWMB | Channel B PWM input/200 kΩ pull-down at internal |
User Guide
Examples
TBD
