Overview

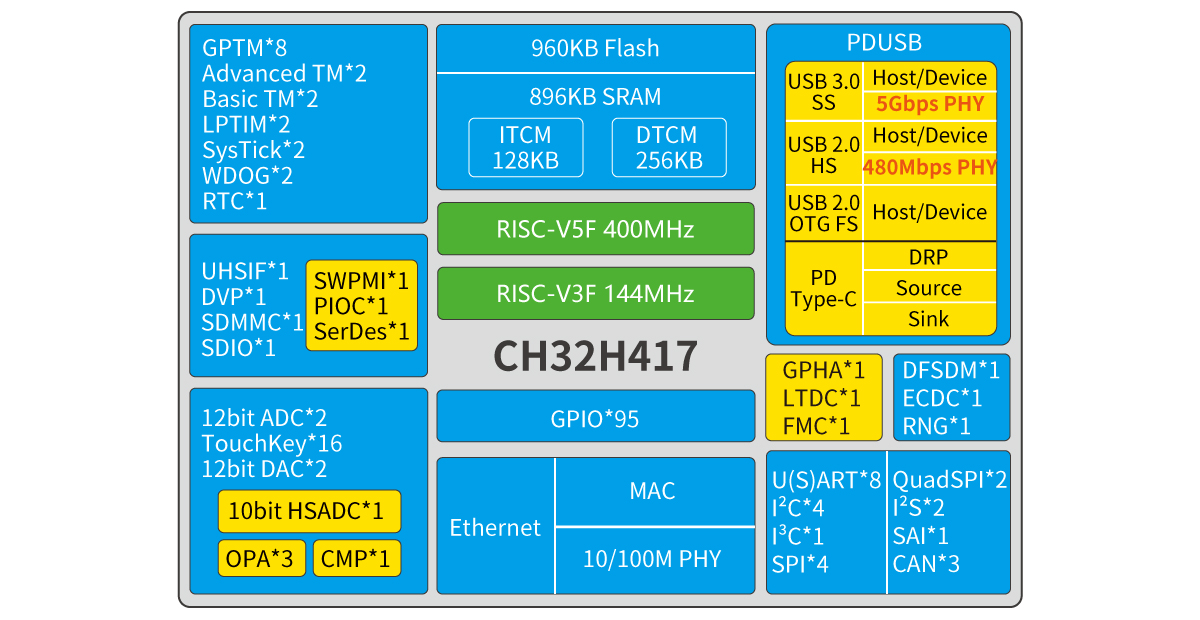

CH32H417 is an interconnected general-purpose microcontroller designed based on QingKe RISC-V5F and RISC-V3F dual cores. CH32H417 integrates USB 3.2 Gen1 controller and transceiver, 100M Ethernet MAC and PHY, SerDes high-speed isolated transceiver, Type-C/PD controller and PHY, provides SD/EMMC controller, 500MBytes universal high-speed interface UHSIF, DVP, SWPMI, PIOC, FMC, DFSDM, LTDC, GPHA, DMA Controller, multi-timers, 8 UARTs, I3C, 4 groups of I2C, 2 groups of QSPI, 4 groups of SPI, 2 groups of I2S, 3 groups of CAN and other peripheral resources.

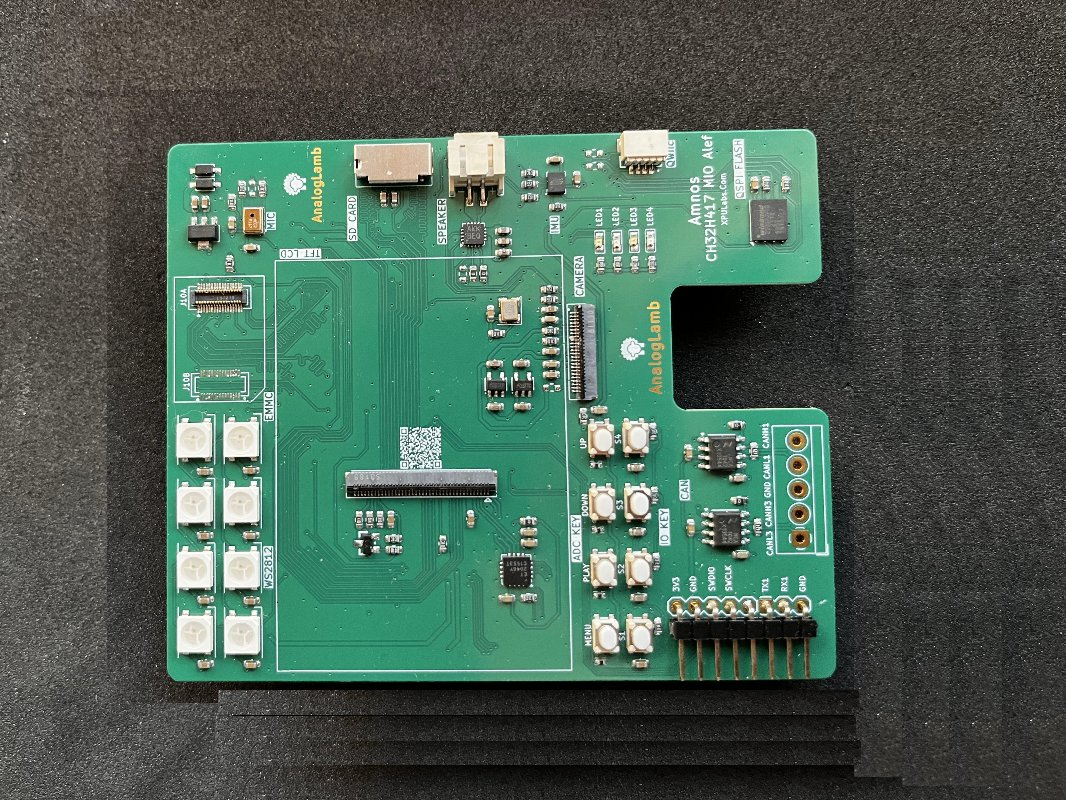

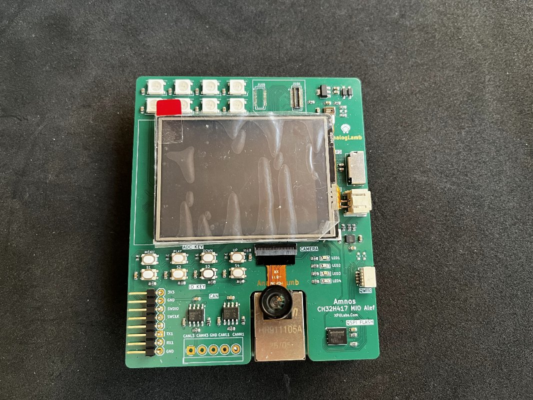

Since the CH32H417 development board only provides pin headers and no peripherals, we have designed the CH32H417 MIO peripheral board. It can be conveniently connected to the CH32H417 development board and integrates multiple peripherals such as TFT LCD, camera, SD card, QFlash, etc. With the provided WCH CH32H417 SDK, developers can easily learn USB and other development based on the CH32H417.
Board Features
- Supports 2.4-inch TFT LCD screen with 16-bit parallel interface, 240×320 resolution, driven by the ILI9341 chip.
- Supports OV2640 DVP interface camera.
- Support 4-bits Micro SD Card Interface
- Support Digital Audio Amps MAX98357 with PH2.0 Interface
- Support Digital MEMS Microphone with I2S interface
- Supports two sets of CAN transceivers.
- Support 8-bits WS2812 for POIC
- Support 6-Axis IMU LSM6DS
- Support QSPI Flash
- Support Qwiic Interface
- Support ADC Button x 4
- Support GPIO Button x 4
- Support LED x 4
- Support SWD & UART Interface for Debug
User Guide & SDK
Buy it Now
Resources
Documents
Package List
- Amnos CH32H417 MIO Board
- 2.8 inch TFT LCD
- OV2640 Camera
